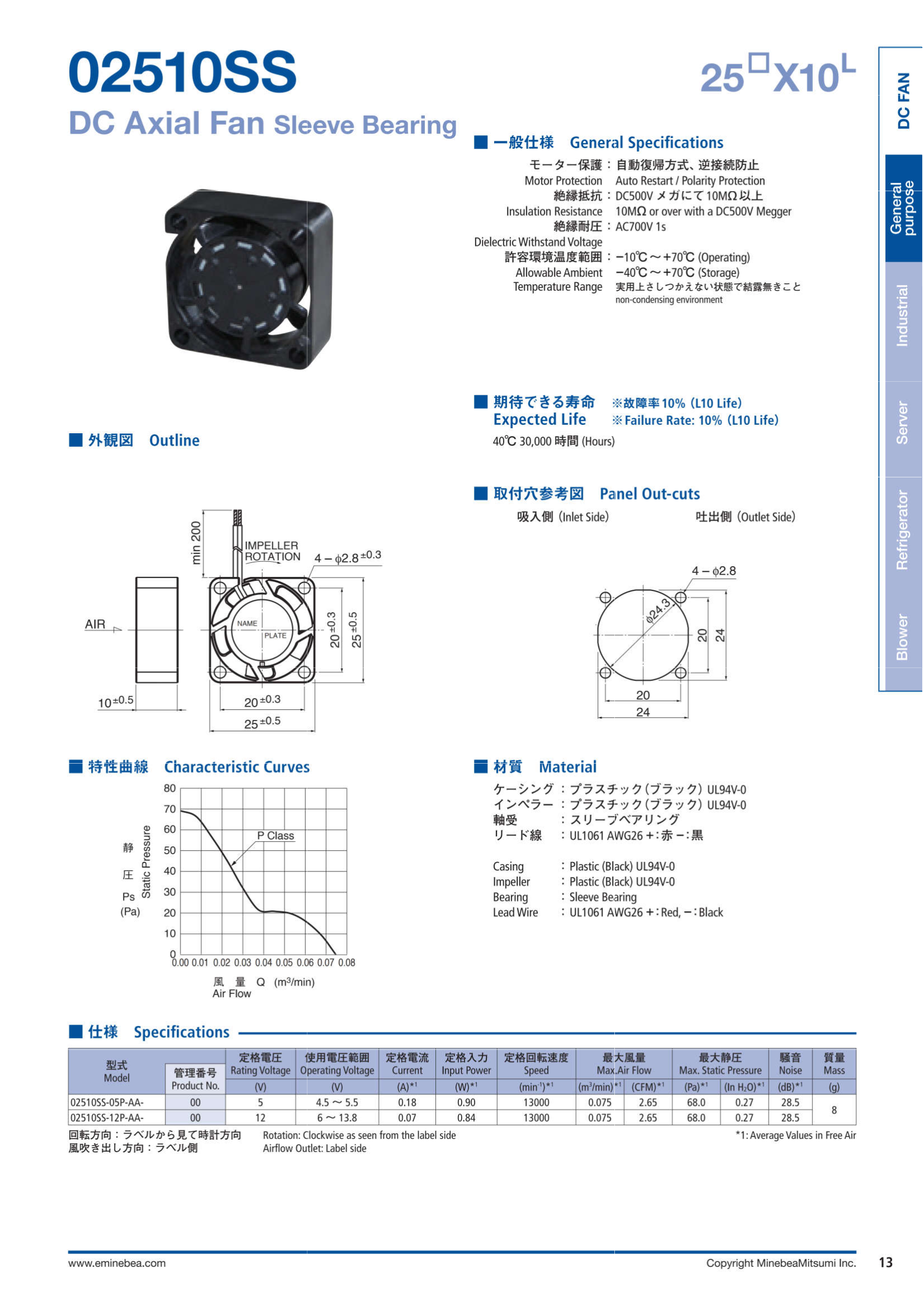

02510SS-12P-AA
Description
Package Information
Inquiry
| Product Model | 02510SS-12P-AA | Motor Structure | Rotor | ||
| Motor Protection | Expected Life | Temperature: 40 °C, Life: 30000 hours | Bearing Type | ||
| Operating Temperature | -10°C ~ 70°C | Rated Voltage | 12.0 V | Current Type | DC |
| Frequency | HZ | Rated Current | 0.07 A | Starting Voltage | 12.0 V |
| Voltage Range | 6.0~13.8 V | Maximum Airflow | 0.08 m³/min | Rated Speed | 13000 min⁻¹ |
| Rated Input Power | 0.84 (W) ±10% ±20% | Maximum Static Pressure | 0.27 In H₂O | Maximum Airflow | 2.65 CFM |
| Maximum Static Pressure | 68.0 Pa | Weight | 8.0 g | Noise | 28.5 dB |
| Dimensions | 25.0 * 25.0 * 10.0 mm (LWH) | Housing | Origin | Japan |
| Product Model | 02510SS-12P-AA | Motor Structure | Rotor | ||
| Motor Protection | Expected Life | Temperature: 40 °C, Life: 30000 hours | Bearing Type | ||
| Operating Temperature | -10°C ~ 70°C | Rated Voltage | 12.0 V | Current Type | DC |
| Frequency | HZ | Rated Current | 0.07 A | Starting Voltage | 12.0 V |
| Voltage Range | 6.0~13.8 V | Maximum Airflow | 0.08 m³/min | Rated Speed | 13000 min⁻¹ |
| Rated Input Power | 0.84 (W) ±10% ±20% | Maximum Static Pressure | 0.27 In H₂O | Maximum Airflow | 2.65 CFM |
| Maximum Static Pressure | 68.0 Pa | Weight | 8.0 g | Noise | 28.5 dB |
| Dimensions | 25.0 * 25.0 * 10.0 mm (LWH) | Housing | Origin | Japan |
