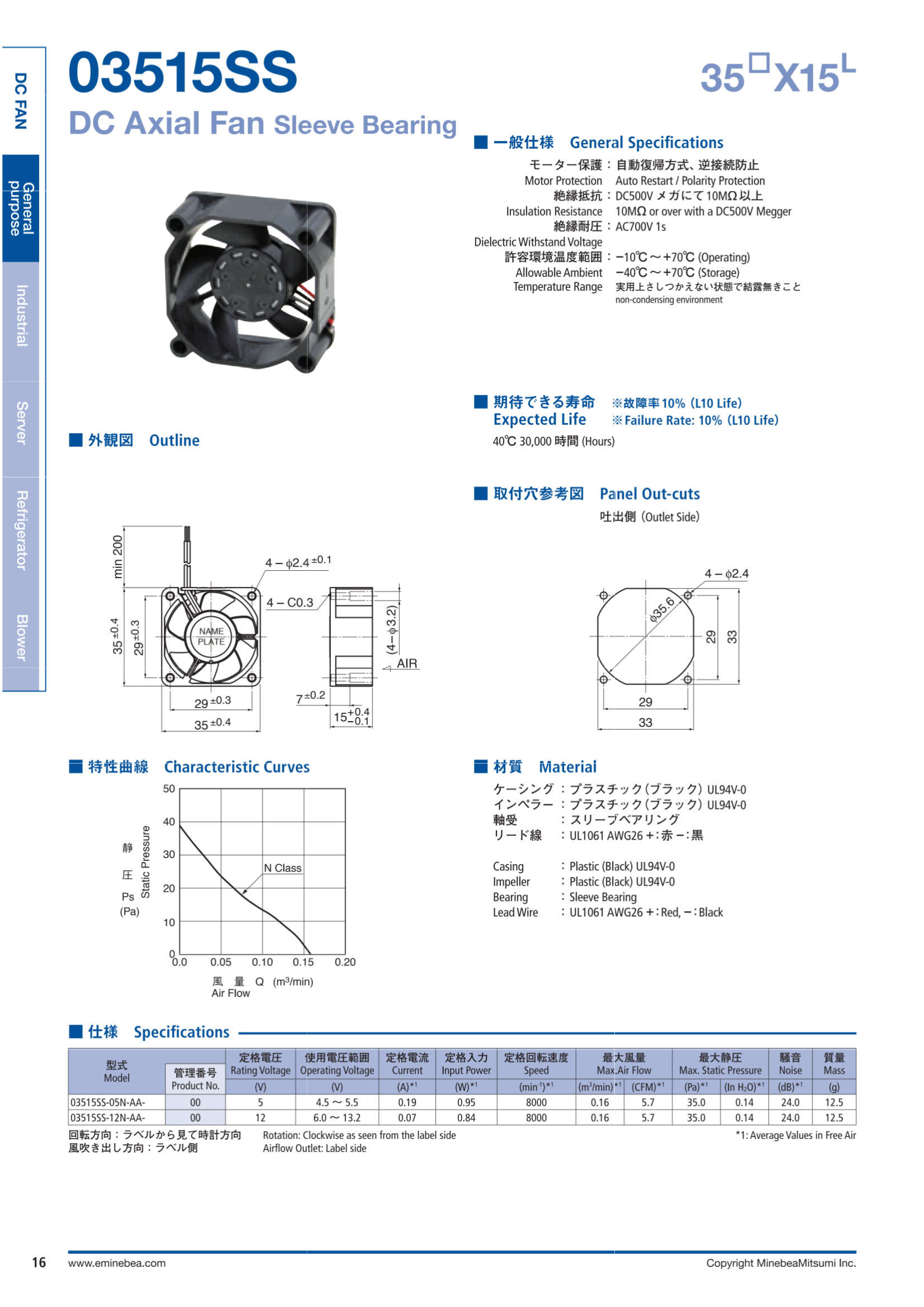

03515SS-05N-AA
Description
Package Information
Inquiry
| Product Model | 03515SS-05N-AA | Motor Structure | Housing | ||
| Motor Protection | Rotor | Bearing Type | |||
| Operating Temperature | -10°C ~ 70°C | Expected Life | Temperature: 40 °C, Life: 30000 hours | Current Type | DC |
| Frequency | 60 HZ | Rated Voltage | 5.0 V | Starting Voltage | 5.0 V |
| Voltage Range | 4.5~5.5 V | Rated Current | 0.19 A | Rated Speed | 8000 min⁻¹ |
| Rated Input Power | 0.95 (W) ±10% ±20% | Maximum Airflow | 0.16 m³/min | Maximum Airflow | 5.7 CFM |
| Maximum Static Pressure | 35.0 Pa | Maximum Static Pressure | 0.14 In H₂O | Noise | 24.0 dB |
| Dimensions | 35.0 * 35.0 * 15.0 mm (LWH) | Weight | 13.0 g | Origin | Japan |
